Do-It-Yourself
Cabin / Camp / Cottage Alarm Security
System Kit
Part Number 30001
How to
Purchase a
Cabin Alarm
Facts you should know about this Cabin Alarm Security System!

No Power Required:  This Cabin Alarm Security System Kit is designed for remote cabins, camps,
campers or cottages that don't have AC Power.  This Cabin Alarm Security System may be the only alarm
system designed and made available for remote properties such as Cabins, Camps, Cottages, etc.

Painfully Loud Interior Siren:  This Cabin Alarm Security System Kit incorporates a 140db siren, one
of the loudest sirens available on the market.
Its as loud as a shotgun blast!
It's painfully loud and will make the crooks think twice before entering your remote property.  Burglars don't like
loud sirens.
(See Warnings and Precautions Below)

Zero Current Draw:  This Cabin Alarm Security System Kit was designed to draws NO CURRENT when
armed.  Other Alarm Systems require AC Power and have parasitic current leaks that will eventually drain your
batteries DEAD.   A well maintained and fully charged 12V heavy duty deep cycle battery should hold it's
charge for months, possibly even a year before requiring maintenance and a recharge.

Easy to Install: Each Cabin Alarm Security System Kit comes with Complete and Easy to follow
Instructions.  Most installations can be done in a *day or *weekend.
*Please Note: Actual time depends on the amount of beer consumed and the number of friends actually helping you.

Solar and Wind Power Friendly: This Cabin Alarm Security System is perfect for 12V Solar and Wind
Powered Systems.  It doesn't use power when armed and it ties directly into 12V DC systems.

Expandable: This Cabin Alarm Security System can be customized and expanded.  You can add more
sirens, flashing strobes, various trigger devices (with Normally Open Contacts) to your Cabin Alarm Security
System.  You can add just about any device that runs on a 12V DC battery.

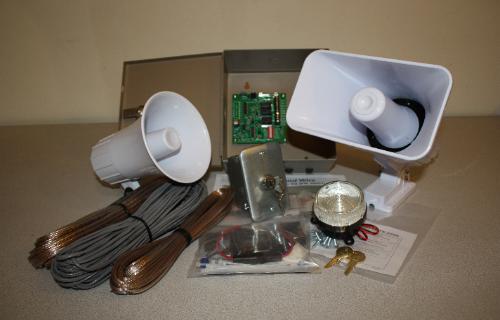

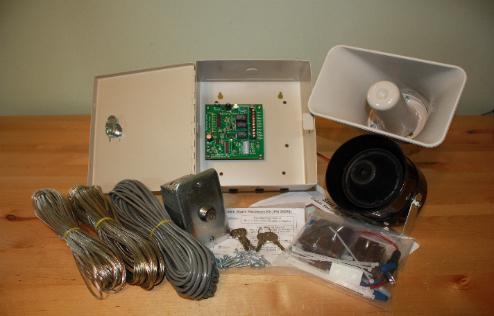

Parts Provided with the
Cabin Alarm Security System Kit

Loud 120db Siren (A)  – One Large Outside 30- Watt Siren 120db (Dual Tone) that can be heard a half
mile away.  Add more to your Cabin Alarm Security System Kit if you like.

Painfully Loud 140db Siren (B) – One Painfully Loud 140db Evacuation Siren for Inside that will send
you running for the door.  I've seen it drive mice out!
(See Warnings and Precautions Below)

Plenty of Cable and Wires (C)
50ft of 18 gage Cable w/Red and Black Wires
50ft of 18 gage Speaker Wire
75ft of 24 gage Speaker Wire

Alarm Control Box (D) -  Locking Control Box housing the Control Board which comes with the Battery
Check Meter, Siren Timer, and two Keys.

Switch and Key (E) – Switch w/Plate, Metal Electrical Box, and two Keys.  Extra keys can be requested at
a minimal cost.

Magnetic Switches (F)- 3 Sets of Non-Contacting Magnetic Door / Window Switches with Mounting
Screws and Shims.  More switches can be purchased separately at a minimal cost.

Instruction Booklet  – Complete, easy to follow instructions with pictures and diagrams.

Miscellaneous Items –  Tie Wraps,  Self-Adhesive Tie Wrap Mounts,  Wire Nuts,  In-Line Fuse and
Holder, Siren and Alarm Mounting Screws.

Additional Parts you’ll need to buy (the finer print of course)

12V Battery  -
You need to buy an All Purpose Lawn & Garden 12V DC Battery (minimum for system operation) or for
better performance a 12V Deep Cycle Marine Battery.

Battery Box – Most battery manufacturers recommend a small-ventilated Plastic or Wooden Box to hold the battery.

Battery Connection Hardware – You’ll need hardware and wire terminals to connect the wiring and fuse to the
battery terminals.

Insulated Staples – These are required if you plan to run the wiring along your moldings and walls and can be
purchased at most hardware stores.
Cabin Alarm Security System Kit Features
The Cabin Alarm Security System Control
Box comes with a Battery Check Feature.

Simply press the Button marked “Battery Check” and
the LED Indicator meter lights up according to your
battery voltage.  This helps you monitor the voltage level
of your battery without having to haul a volt meter around.
The Cabin Alarm Security System can be
set to operate from 1 to about 136 minutes

Simply set one of the Timer Setting “DIP Switches" to
the desired time setting.  The alarm will stop at the
desired time.  A separate output can be used to power
a strobe or other device until someone resets the Alarm.
Warnings and Precautions

This is one powerful alarm system designed to protect property on it's own.

Never leave children or pets inside the building when the alarm is set!

This system uses very loud sirens to notify far off neighbors and to drive intruders out of the building.

This system was designed to operate in remote, seasonal use properties ONLY.

At your option you many exchange the 140db siren for a lower decibel siren if there are any safety concerns.

We at Sun Wind and Wire have endeavored to include the major components of your system.
However, as each installation is unique to its site and installer we could not possibly hope to
provide the exact fasteners that you may require.  After planning your installation you may need
to buy different or additional fasteners to complete your installation.
Warranty:

This product is warranted against defects in material and workmanship for a period of
6 months from the date of purchase.  We will, at our option, repair or replace any
component with a new or refurbished component if it fails to meet this warranty.

Sun Wind and Wire cannot accept responsibility for failures or damages due to
circumstances beyond our control.
A
B
C
D
E
F
