Do-It-Yourself
Shed Alarm Security System Kit
Part Number 30003
How to
Purchase a
Shed Alarm
Facts you should know about this Shed Alarm System!

Uses for the Shed Alarm Kit:  The Shed Alarm Security System Kit is designed to protect
Storage Sheds, Trailers, Barns, Garages, Construction / Contractor Trailers or Sheds, or any other
Outbuilding that doesn't have AC power available.  These Sheds, Trailers, Barns, Garages, or
Construction Trailers should be within sight or earshot of your home, office, or a nearby neighbor.

Operation of the Shed Alarm Kit: This Shed Alarm System is armed and disarmed from
outside using a key switch.  There is no delay timer and the alarm will go off instantly if a door is
opened.   This prevents an intruder from tampering with the system before it goes off.

This Shed Alarm System is designed to set off a 110 db Outside Siren and a 110db Inside Mini Siren
for the selected time you set.  A Red Strobe Light will flash indefinitely until the Shed Alarm Security
System is reset or the battery runs out of power.

Zero Current Draw:  This Shed Alarm Security System Kit was designed to draw NO CURRENT
when  armed.  Other Alarm Systems require AC Power and have parasitic current leaks that will
eventually drain your batteries DEAD.   A well maintained and fully charged 12V heavy duty deep cycle
battery should hold it's charge for months, possibly even a year before requiring maintenance and a
recharge.

Easy to Install: Each Shed Alarm Kit comes with Complete and Easy to follow Instructions.

Solar and Wind Power Friendly: This Shed Alarm System is perfect for 12V Solar and Wind
Powered Systems.  It doesn't use power when armed and it ties directly into 12V DC systems.

Expandable: This Shed Alarm System can be customized and expanded.  You can add more
sirens, flashing strobes, glass breakage switches, trigger mats, etc.  You can add just about any
device that runs on a 12V DC battery to this Shed Alarm System.

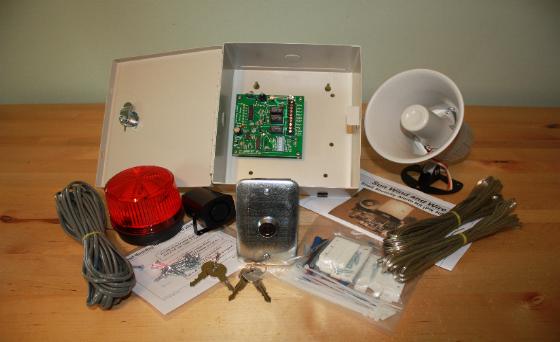

Parts Provided with the
Shed Alarm Security System Kit

Loud 110 db Siren– One loud Outside 20 - Watt 110 db (Dual
Tone) Siren.  Add more to your Shed Alarm System if you like.






Red Strobe Light – One bright Outside Red Strobe Light.






Loud Mini 110db Siren– Size doesn't matter when it comes to this
little guy.  Install inside your shed to add some pain to your system.
Plenty of Cable and Wires
25ft of 18 gage Cable w/Red and Black Wires
25ft of 18 gage Speaker Wire
25ft of 24 gage Speaker Wire

Alarm Control Box -  Locking Control Box housing the Control Board which comes with the
Battery Check Meter, Siren Timer, and two Keys.

Switch and Key – Switch w/Plate, Metal Electrical Box, and two Keys.  Extra keys can be
requested at a minimal cost.

Magnetic Switches - 2 Sets of Non-Contacting Magnetic Door / Window Switches with
Mounting Screws and Shims.  More switches can be purchased separately at a minimal cost.

Instruction Booklet  – Complete, easy to follow instructions with pictures and diagrams.

Miscellaneous Items –  Tie Wraps,  Self-Adhesive Tie Wrap Mounts,  Wire Nuts,  In-Line Fuse
and Holder, Siren and Alarm Mounting Screws.

Additional Parts you’ll need to buy (the finer print of course)

12V Battery  -
You need to buy an All Purpose Lawn & Garden 12V DC Battery (minimum for system
operation) or for better performance a 12V Deep Cycle Marine Battery.

Battery Box – Most battery manufacturers recommend a small-ventilated Plastic or Wooden Box to hold
the battery.

Battery Connection Hardware – You’ll need hardware and wire terminals to connect the wiring and fuse
to the battery terminals.

Insulated Staples – These are required if you plan to run the wiring along your moldings and walls and
can be purchased at most hardware stores.
Shed Alarm Security System Kit Features
The Shed Alarm Security System Control Box
comes with a Battery Check Feature.

Simply press the Button marked “Battery Check” and the LED
Indicator meter lights up according to your battery voltage.  This
helps you monitor the voltage level of your battery without having
to haul a volt meter around.
The Shed Alarm Security System can be set
to operate from 1 to about 136 minutes
Most communities have limits on how long an alarm can
sound after activation so please check local ordinances

Simply set one of the Timer Setting “DIP Switches" to the
desired time setting for your alarm to sound after
activation.  A second "Constant"12V DC output is
available to power a strobe or other device until someone
resets the Alarm.

We at Sun Wind and Wire have endeavored to include the major components of your
system.  However, as each installation is unique to its site and installer we could not
possibly hope to provide the exact fasteners that you may require.  After planning your
installation you may need to buy different or additional fasteners to complete your
installation.
Warranty:

This product is warranted against defects in material and workmanship for a period of
6 months from the date of purchase.  We will, at our option, repair or replace any
component with a new or refurbished component if it fails to meet this warranty.

Sun Wind and Wire cannot accept responsibility for failures or damages due to
circumstances beyond our control.
